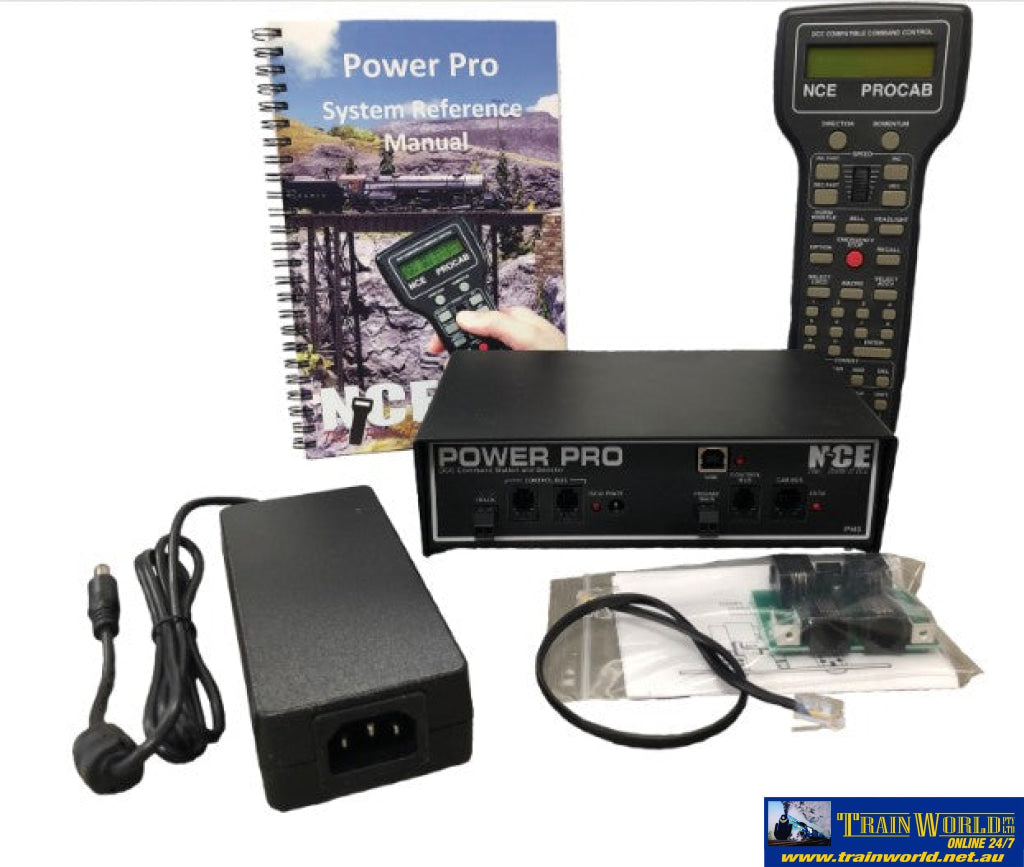

NCE-0035 NCE PH5 Power Pro 5Amp System & Transformer

NCE-0035
NCE
PH5 Power Pro 5Amp System & Transformer

NCE PH-5 DCC System

The PH-5  is the most user-friendly DCC system on the market. The Pro-Cab walks you through every operation with clearly labelled buttons and well thought out menu prompts in plain English on its backlit LCD display. The most often performed operations usually are just a single keypress.

The PH-5 starter set has everything you need to get DCC equipped trains up and running with it's own power supply. The Quick Start Guide included in our system reference manual will have you up and running in less than 20 minutes.

PH-5 Specifications:
* Cabs: 60 maximum
* Number of simultaneous trains: 250
* Number of consists: 127
* Range of locomotive addresses: 0-9999
* Range of consist addresses: 1-127
* Range of accessory addresses: 1-2044
* Continuous Output Current: 5 Amps
* Short circuit handling: Auto shutdown [500ms]
* Output voltage: Factory set to 14V, adjustable 10V to 16.5V

* Power supply included 19V DC, 5Amps @ 90VA
