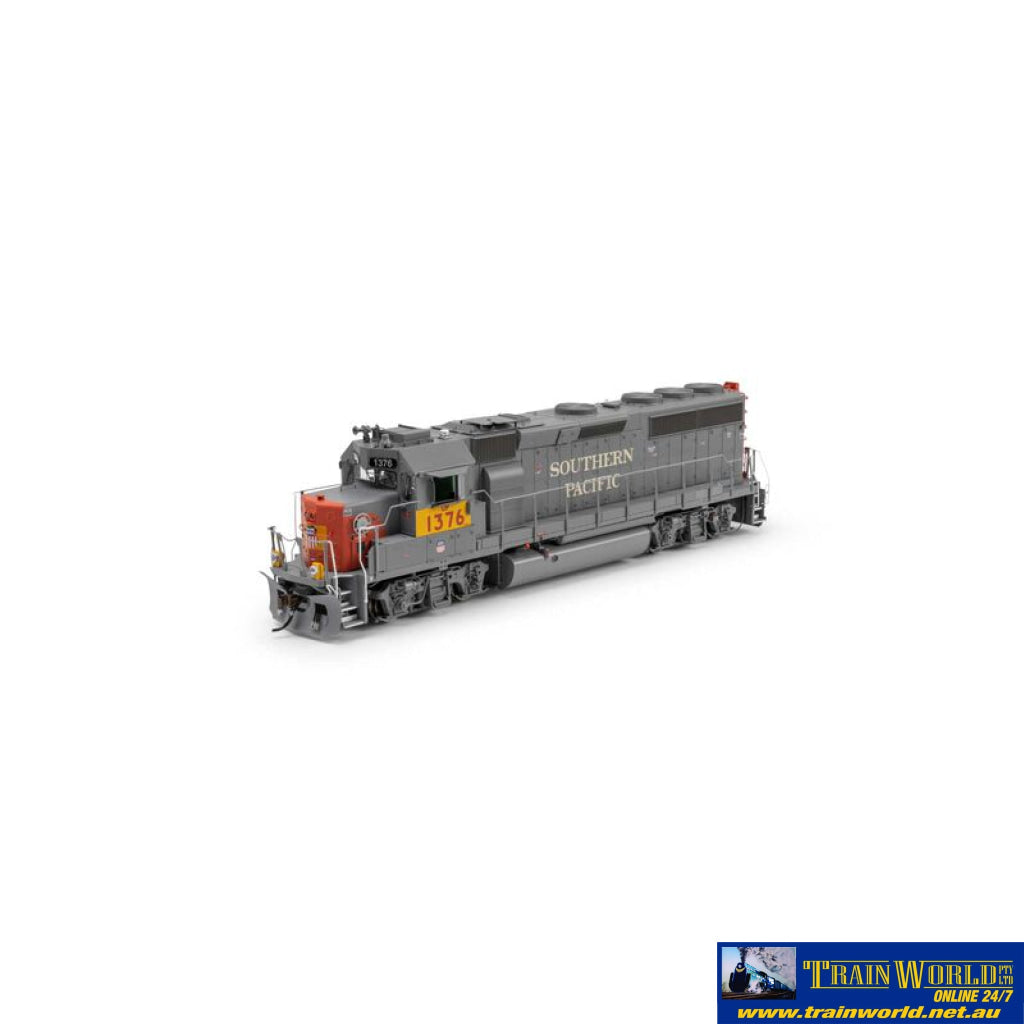

ATHG-1761 Athearn Genesis GP40-2 Locomotive with DCC & Sound, Primed for Grime UP 'Ex-SP' #1376 HO Scale
ATHG-1761
Athearn Genesis
HO Scale
GP40-2
UP 'Ex-SP' #1376
DCC/Sound-Fitted
PROTOTYPE AND BACKGROUND INFO:
By the early 1970s, many first generation diesels were reaching the end of their service lives. One of the most common replacement locomotives became the GP40-2. EMD began production of the 16-cylinder, turbocharged, 3000 horsepower engine in 1972. These locomotives were developed for service where higher horsepower and faster service were preferable. A major feature for the GP40-2 was the introduction of the “dash 2” modular electrical cabinet. For more than 40 years, the GP40-2 has worked main line freights, locals, switching jobs, yard service, and helper service. Many remain in service today.
MODEL FEATURES:
- Coupler cut levers
- Drop steps unless noted
- “Nub” style walkway tread
- Lift rings
- Walkway tread
- Windshield wipers
- Lit number boards
- Lit class lights, if equipped
- Lit signal lights and/or beacons, if equipped
- Bell placement & type per prototype
- Detailed fuel tank with fuel fillers, fuel gauges, and breather pipes
- Blomberg-B or Blomberg-M trucks with appropriate bearing caps
- Speed recorder unless noted
- See-through cab windows and full cab interior
- Fine-scale Celcon handrails for scale appearance
- Etched metal fan grilles
- Air tanks mounted below sill unless noted
- Body-mounted McHenry® scale knuckle couplers - Kadee® compatible
- Trainline and MU hoses
- MU stands
- Wire grab irons
- Sanding lines
- DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
- Scaled from prototype resources including drawings, field measurements, photographs, and more
- Accurately painted and printed paint schemes
- Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
- All-wheel drive with precision gears for smooth & quiet operation
- All-wheel electrical pickup provides reliable current flow
- Wheels with RP25 contours operate on all popular brands of track
- LED Lighting for realistic appearance
- Heavy die-cast frame for greater traction and more pulling power
- Packaging securely holds for the model for safe storage
- Minimum radius: 18”
SOUND-EQUIPPED MODELS ALSO FEATURE:
- Onboard DCC decoder with SoundTraxx Tsunami2 sound
- Dual cube speakers for optimal sound quality
- Sound units operate in both DC and DCC
- Full DCC functions available when operated in DCC mode
- Engine, horn, and bell sounds work in DC
- All functions NMRA compatible in DCC mode
- Precision slow speed control
- Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
- Many functions can be altered via Configuration Value (CV) changes
- CV chart included in the box
PRIMED FOR GRIME MODELS FEATURE:
- Duplicated look and feel of “In Service” equipment
- Faded base colors matched to the prototype
- Perfect starting point for adding grime and rust
