494-NTZ4 Nixtrainz 21-Pin Decoder Buddy with 1K Ohm Resistors Onboard (8-Outputs)

  • $32.40 AUD


494-NTZ4
NTZ4
Nixtrainz
21-Pin Decoder Buddy
1K Ohm Resistors Onboard
8-Outputs

The Decoder Buddy was developed for the 8 output decoders.

This mother board does not include the 21-Pin Decoder.

This mother board requires soldering.

This printed circuit board is NOT INTENDED FOR USE IN A DC SYSTEM.  However, if the decoder you are using supports DC operation it should work.

The Original Decoder Buddies come with standard 1K resistors onboard.

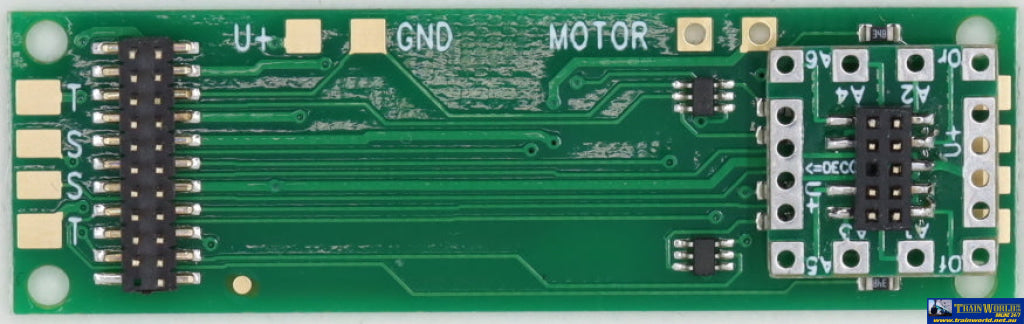

The mother board includes:

One 21 Pin Decoder receptacle
Two pairs of track input pads
One pair of motor input pads
One set of stay alive pads, U+, GND.  (The white wire from a Power Pack can be soldered onto the Original Decoder Buddy fairly easily)
Two pairs of speaker pads in parallel by side
8 lighting outputs on a separable “small connector board”
Resistors for use with LED lighting. The “0” ohm resistors accommodate previously installed LEDs with resistors in line and “12-volt LEDs”.  It is IMPORTANT to realize that resistors must be used when LEDs are connected to the lighting outputs of the custom “0” Ohm boards!!!

×
×
