TCS-A6X TCS 1001 A6X Decoder
TCS-A6X
1001-A6X
TCS
1001 A6X Decoder

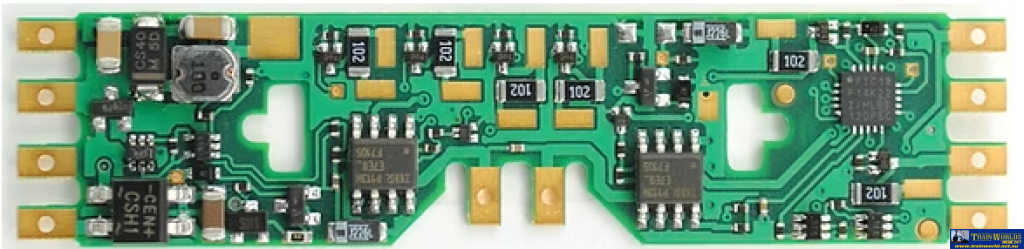

The A6X is six function HO-scale "drop-in" style mobile decoder with integrated 1.5V power supply for Atlas, Athearn, Kato, etc. locomotives. Examples include the following:
Athearn:
- F59PHI
- F3
Atlas:
- RS-1/RS-3/RS-11
- C424
- GP7
Kato:
- GP35
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- 1.5 Volt Power Supply: This product has an on-board 1.5 Volt power supply for use with 1.5 Volt bulbs without resistors.
- LED Support: This product does not require external resistors when connecting LED's.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
