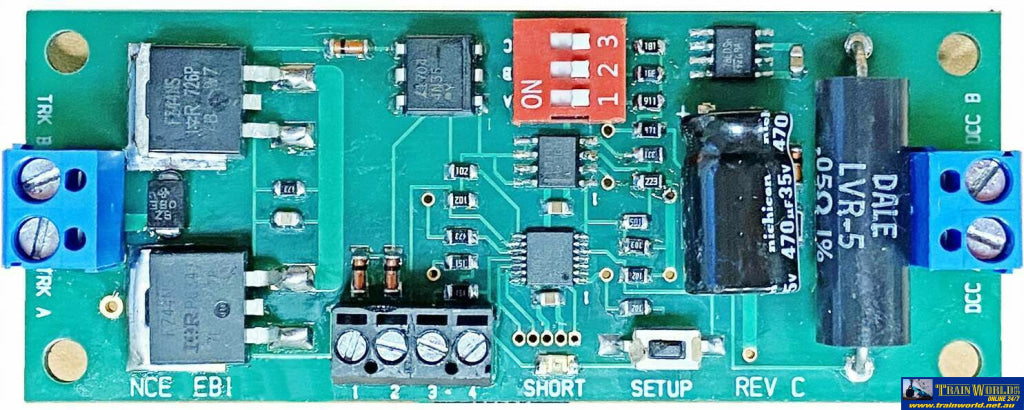

NCE-0225 NCE EB1 Circuit Breaker V1.1 (Single-Circuit)
NCE-0225
NCE
EB1 Circuit Breaker V1.1 (Single-Circuit)
Provides short circuit protection for one power district. Can be used with most DCC systems.
Version 1.1 - This new version works with the Power Cab!
Electronic circuit breaker for use on DCC layouts only.
Features of the EB1:
- Provides short circuit protection for one power district
- Trip current adjustable for 1.5 to 8 Amps
- Easy hookup using screw terminals, no soldering
- Status indication LED
- Additional output for remote LED
- Optional manual reset
- Adjustable short circuit response time
- Adjustable power-up response time to accommodate startup of sound decoder equipped locomotives
